Quick Details

  • Condition: New
  • Type: Wood Chipper, Hydraulic drum type wood log drum chipper machine
  • Use: log chippe r
  • Power Type: Electric
  • Production Capacity: 4t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: hongxin
  • Model Number: HX
  • Dimension(L*W*H): 2100x2400x2500
  • Weight: 3000
  • Certification: ISO
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model: JX-216
  • Inlet size(mm): 230*500
  • Blade Qty(Pieces): 2
  • Blade roller speed(R): 590
  • Max diameter of material(mm): 230
  • Chip size(mm): 30
  • Output(t): 7-8
  • Main Motor power(kw): 55
  • Feeding roller motor power(kw): 3-4

Packaging & Delivery

Packaging Details export standard wooden case
Delivery Time 5 -7 days wood log drum chipper machine

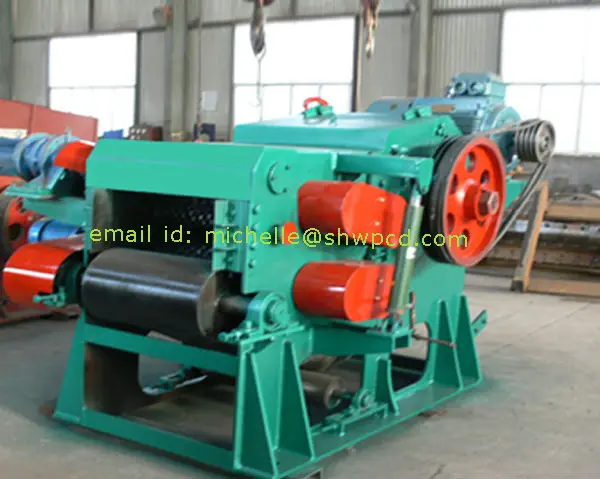

Hydraulic drum type wood log drum chipper machine

Wood timber drum chipper                     Hydraulic drum type wood log drum chipper machine

Wood log drum chipper machine

Description:

1.Drum chipper series product is the special equipment, production of wood products are widely applied in particieboard factory, and the high density fiberboard, stubble, biomass power plant, wood factory industries and manufacturer of preparation before production units.



2.The main raw materials are cutting wood, wood cutting, paths using (such as the branches, branches, and the slab, attrib wattle, logs, waste veneer, etc), and it can also be used to cutting non-wood materials (such as sugar cane, reed, bamboo, etc.).



3.Cutting down the qualified materials through the screen mesh, from bottom of materials, cutting machine will be.

Hydraulic system: for the pump to oil cylinders, can start cover, facilitate blade replacement, In the maintenance can raise the feed roller assembly, easy adjustment, and the gap of the fly and comb of the board.





Technical specification:

Model

JX215

JX216

JX218

JX2113

Feeding size(mm)

160*400

230*500

300*680

450*700

Quantity fly_cutter (piece)

2

2

2

2

Knife roll speed(turn)

592

590

650

500

Maxmun diameter of the material(mm)

160

230

300

450

Chipper size(mm)

30

30

30

38

Capacity( T)

3-4

7-8

12-15

15-30

Main moter power(kw)

45

55

110

200-250

Feeding roll moter power(kw)

2.2-3

3-4

4-5

7.5*2

oil pump moter power(kw)

1.5*1

1.5*1

1.5*1

3*1

Weight(kg)

2990

4070

7000

11840

Overall dimensions(mm)

1470*1550*970

1800*1900*1210

2200*2150*1500

3670*2517*2050

Conveyor moter power(kw)

3

3

3

3



Advantages:

1.. log drum chipper machine is made up of airframe, knife roller, and feed roller, conveyer belt, hydraulic system components.

2.Wood log drum chipper machine adopts high strength steel welded, the whole machine is the supporting basis. Knife roller installed on two or three, four fly, fly with specialized in manufacturing, through the bolt, put pressure on the knife roller fixed on the fly.

3..According to the different thickness of raw materials by cutting, feed roller assembly by hydraulic system can fluctuate within a certain scope.





Contact information:

Ms Angie

Mobile:0086-15238020786

Tel: 0086-0371-65863108

Fax:0086-0371-65863109

Skype:charcoal811
